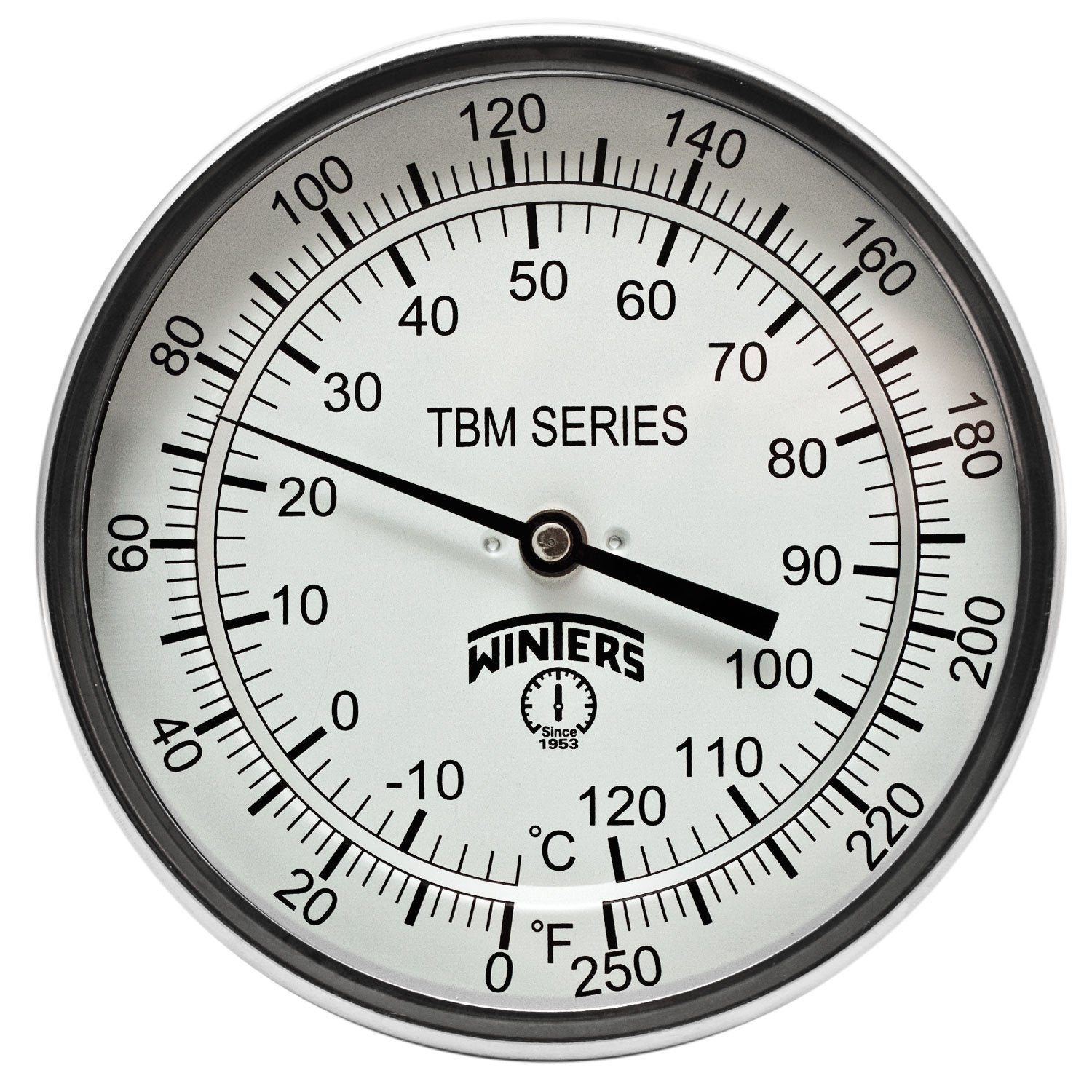

Winters TBM Series Stainless Steel 304 Dual Scale Bi-Metal Thermometer, 4" Stem, 1/2" NPT Fixed Center Back Mount Connection, 5" Dial, 0-250 F/C Range

Brand: Winters Instruments

model number: TBM50040B8

Part Number: TBM50040B8

Details: A general purpose, versatile stainless steel 304 thermometer. Bi-metallic sensing element for reliable readings. Fixed centre back connection. Anti-parallax dial that reduces operator reading errors. 5 Year warranty. Welded stem. Application: industrial process, heating and air conditioning, ventilation and wastewater. Dial 5" aluminum with black markings, dish-shaped. Case: stainless steel 304 AISI. Recalibrator: standard. Ring: stainless steel 304 AISI. Sensing element: bi-metallic coil. Pointer: aluminum, painted black. Maximum operating pressure: 125 psi (861 kPa). Operating temperature: 75 percent of full scale value (recommended maximum). Ambient temperature: -58/248 degree fahrenheit. +/- 1 Percent accuracy. Enclosure rating IP68. Lens: Glass standard, hermetically sealed. Re-zero adjustment screws are standard on the 5" dial. Connection: 1/2" NPT standard. Temperature ranges: 0 degree F to 250 degree F and -20 degree C to 120 degree C. RoHS Compliant.

EAN: 0628311011609

Package Dimensions: 7.1 x 5.9 x 5.8 inches
