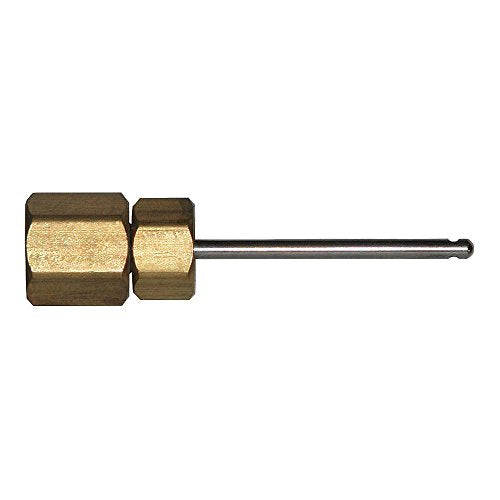

Winters STP Series STP003 Brass Gauge Adaptor, 2-3/4 OAL x 1-3/4" x 1/8" Probe

Brand: Winters Instruments

Features:

• Facilitates quick pressure and temperature readings at recommended test points within process
• Lead free brass
• Gauge adapters ship with protective aluminum sleeve
• 1000 psi Max Pressure Rating

model number: STP003

Part Number: STP003

Details: Applications: Mainly used in heating, plumbing, ventilation and air conditioning industries. Facilitates quick pressure and temperature readings at recommended test points within process. Material/Body: Lead Free Brass. Diaphragm/Core: NBR (Buna N). Temperature Rating: -40°F to 302°F (-40°C to 150°C). Maximum Pressure Rating: 1,000 psi (6895 kPa). Connection: 1/4” NPT Female. 2.25 OAL x 1.75" x 0.125" Probe.

EAN: 0628311800074

Package Dimensions: 3.1 x 0.9 x 0.9 inches
