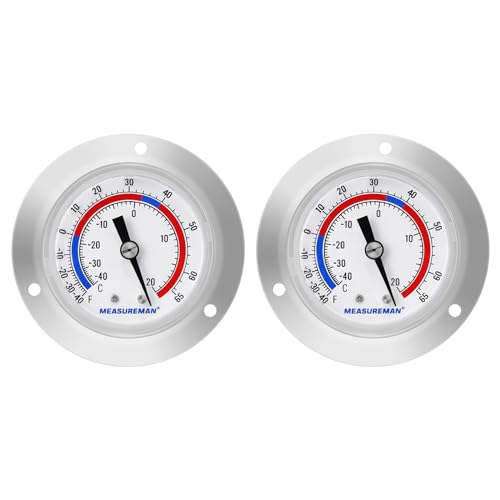

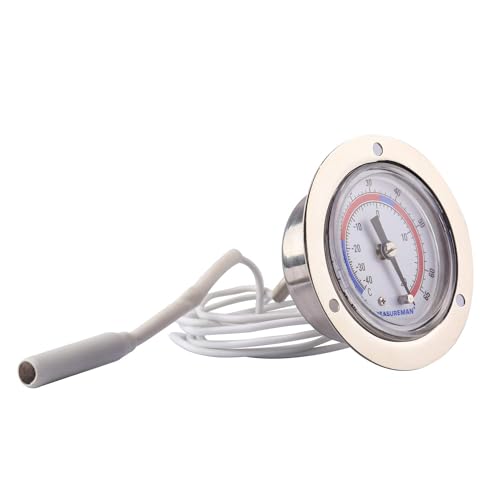

MEASUREMAN Vapor Capillary Flanged Panel Mount Refrigeration Thermometer, 2" Dial, 48" Capillary, -40-65 deg F/-40-20 deg C, Re-Calibration Available （2 Pack）

Brand: MEASUREMAN

Color: White

Features:

• For temperature measuring on refrigeration equipment, chilled systems etc
• 2" dial size, with 3 hole front flange
• bulb dia 8mm x 56mm length
• 48" copper capillary, white plastic covered
• Range: -40-65 deg F/-40-20 deg C, reading can be re-calibrated

model number: MC056

Part Number: MC056

Details: Description
"For temperature measuring on refrigeration equipment, chilled systems etc
Vapor Capillary Flanged Panel Mount Refrigeration Thermometer,
Working principle: vapor actuated

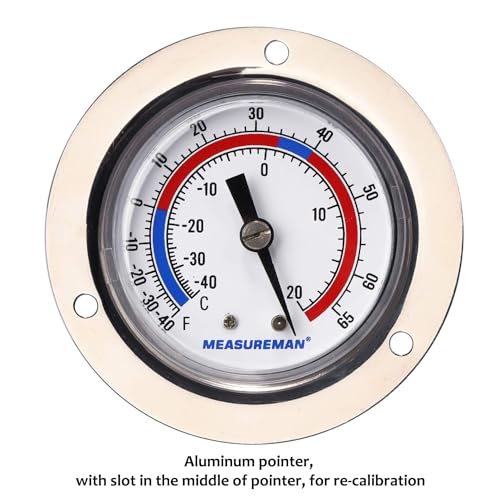

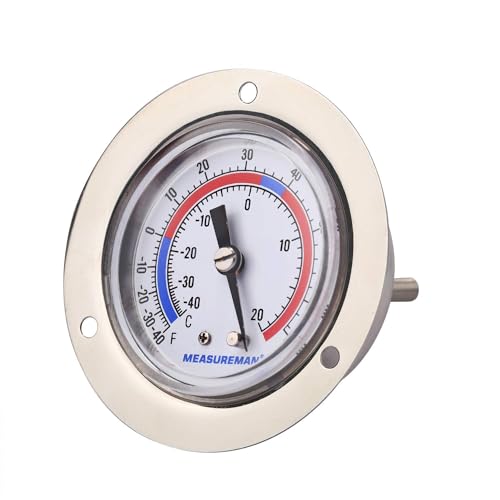

Dial: 2” dial diameter
Case:304 stainless steel case with three holes of front flange
Inside: Copper alloy bourdon tube, brass movement
Mounting: Back connection, with front flange

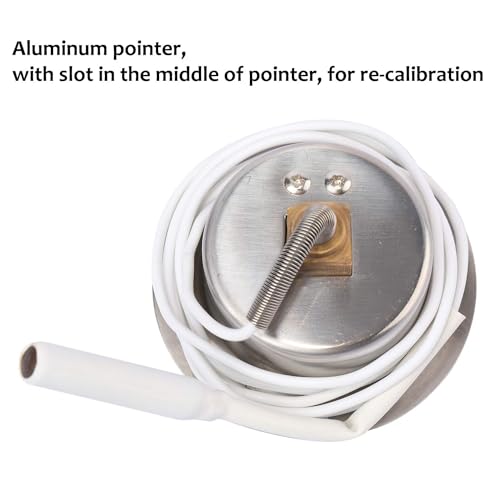

Capillary: 48” copper wire lead with white plastic covering；
Bulb: diameter 8x56mm copper
Window: polycarbonate
Accuracy:+/-2.5%
Range: -40°F - 65°F/-40°C-20°C

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.

Package Dimensions: 4.0 x 3.8 x 3.5 inches
